$1,499.00
| Wingspan | 1344mm (52.9in) |
|---|---|
| Length | 1809mm (71.2in) |
| Flying Weight | 8.5kg (18.7 lb)(with 1800cc Aviation kerosene) |
| Turbine Engine | 6～8KG brushless (required & not included) |
| Cruising speed | 150～200 km/h |
| Flying time | 3～5 mins |
| Wing area | 47.6 dm2 |
| Wing load | 178.6 g/dm2 |
| Main material | 20 times the import of aeromodelling EPO |
| Painting surface | Matte environmental water-borne paint + decal |
| Suitable experience level | □Zero basis □Beginner ■Intermediate □Advanced |
| PNP Assembly difficulty | □☆10mins ■★☆30mins □★★60mins |
| Suitable for ambient temperature | 0℃～40℃ |
| Radio System | 6 channel (required & not included) |
| Control System | MFC-2085 |
| Servos(All 7.4V High voltage) | 40g×2 Metal gear with 60mm lead (left & right Horizontal tail forward) |
| Recommended Battery | 2S,7.4V,3300～5200mAh×2,LiPo with XT60 type plug(required & not included) |
| Ailerons | Yes |
| Flaps | No |
| Elevator(Horizontal tail) | Yes |
| Rudder(Vertical tail) | Yes |
| The smoke system | No |

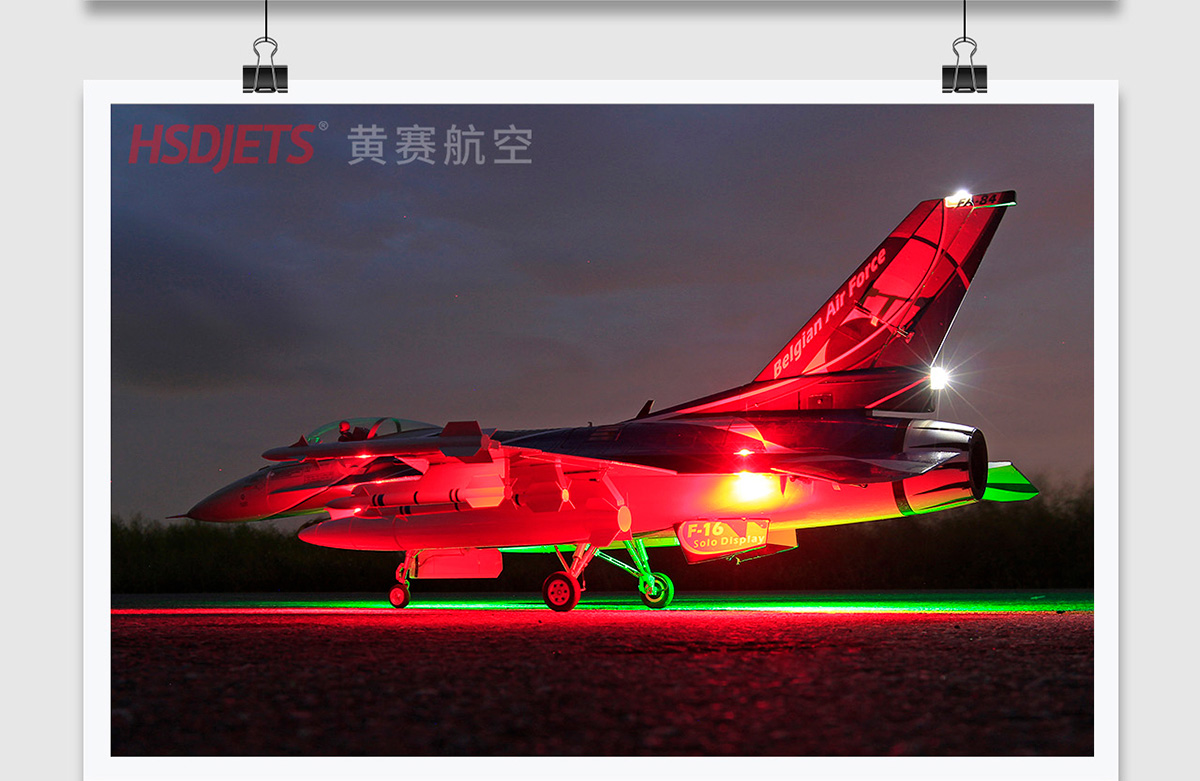

| LED lights system | Yes |
| Electromagnetic brake system | Yes |
| Reinforced gyro | Selective configuration (not included) |
| Packaging / Size | Packing Box + Outer Box(Card mark)/1456×518×337(mm) |
| CG (Center of Gravity) | 155～160mm from the leading edge of the Main Wing |
| Landing Gears | All-metal simulation electronic retractable landing gear×3 |
| Battery Charger | LiPo battery charger (required & not included) |
* Fuselage×1
* Left Wing×1
* Right Wing×1
* Nose×1
* Cockpit canopy×1
* Vertical Stabilizer×1
* Left Horizontal tail ×1
* Right Horizontal tail ×1
* L/R Auxiliary tank ×1
* L/R wingtip missile ×1
* L/R wingtip missile pylon ×1
* L/R No.1 missile ×1
* L/R No.2 missile ×1
* L/R tail fins ×1
* Main wing carbon tube L=400mm external diameter 10mm×2
* Accessories Bag ×1
* Fuselage antenna ×1
* Pitot×1
* Screw (HA3×14mm)×10 (Nose & Engine)
* Screw (HM3×6mm)×2 (Horizontal tail)
* Screw (HA3×10mm)×8 (Tail nozzle & Vertical)
* Screw (KA3×16mm)×8 (Missile)
* Screw (KA3×20mm)×8 (Missile)
* Screw (KM3×60mm)×8 (Auxiliary tank)
* Screw (HM3×10mm)×8 (Main wing)
* HF-16 V2 Manual×1
* MFC-2085 Manual×1

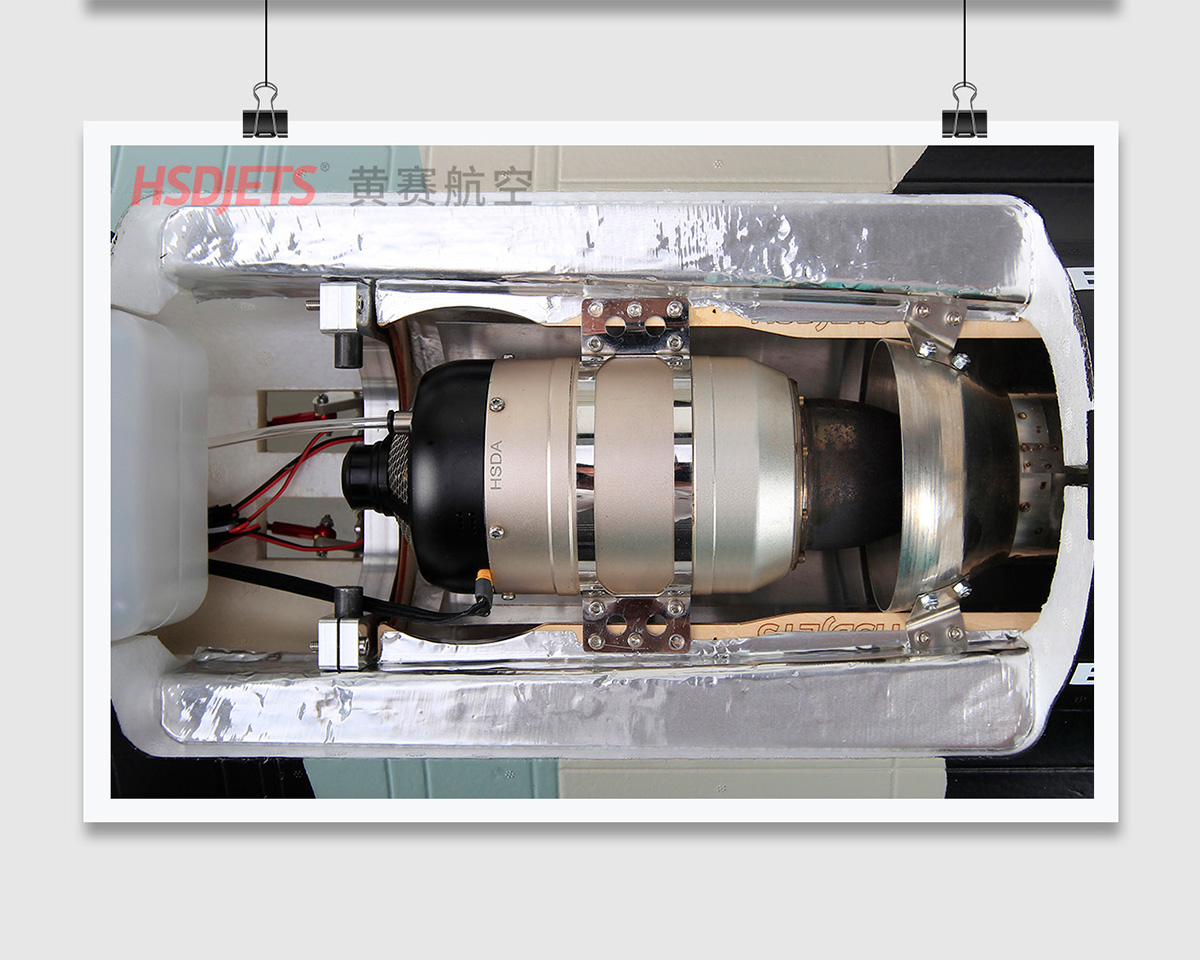

* SW 6～8KG brushless (required & not included)
* 6 channel radio system(radio & receiver) (required & not included)
* 2S,7.4V,3300～5200mAh×2,LiPo with XT60 plug (required & not included)
* LiPo battery charger (required & not included)
