RC Jet Center » RC Jet Models » HSDJETS HF-16 V2 Black Camo

HSDJETS HF-16 V2 Black Camo

IN STOCK, Buy & Fly

Description:

HSDJETS HF-16 V2 Black Camo





Download Manual


Download Manual 2

Price:

$1,499.00

(17% VAT not included)
Wingspan

1344mm (52.9in)

Length

1809mm (71.2in)

Flying Weight

8.5kg (18.7 lb)(with 1800cc Aviation kerosene)

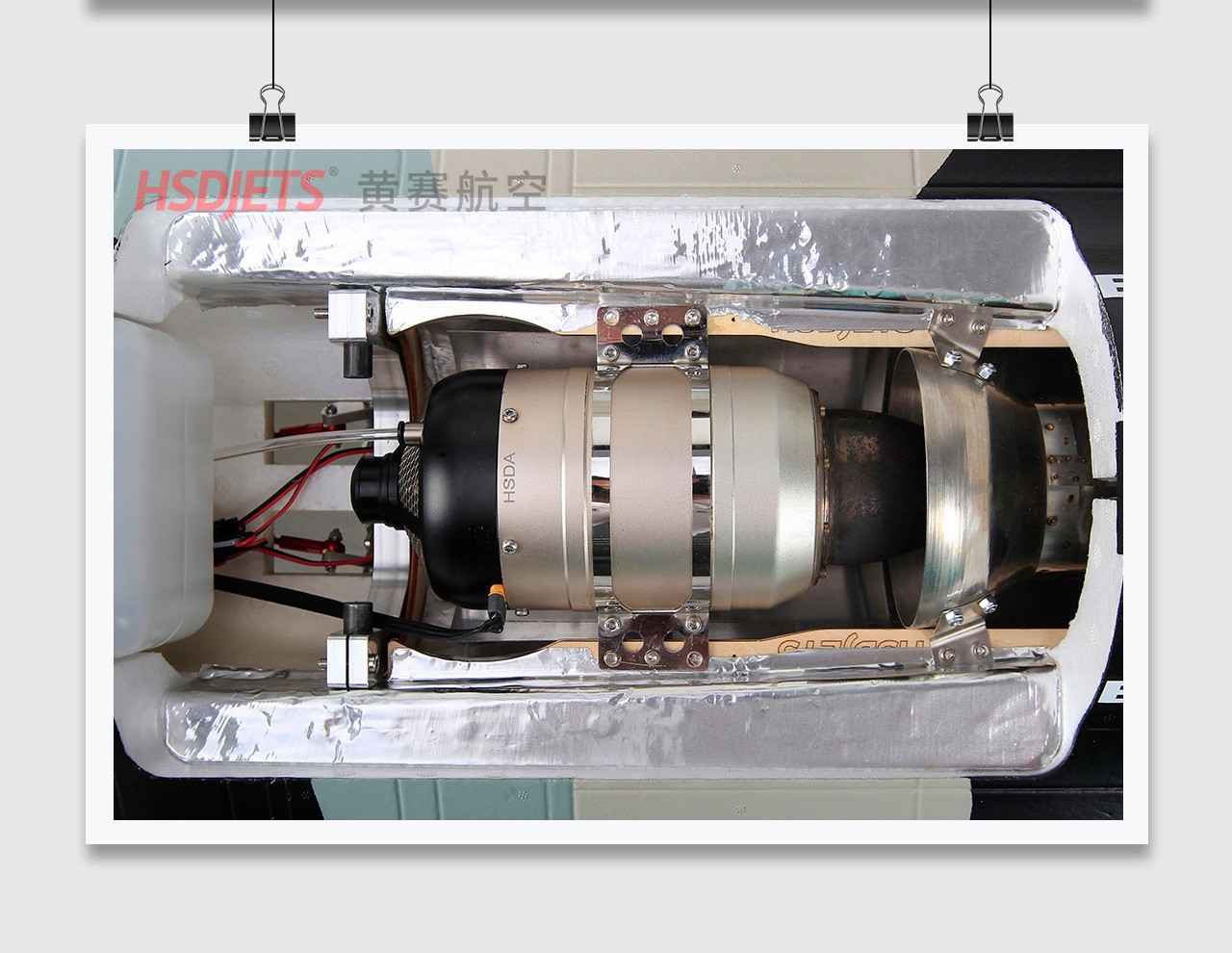

Turbine Engine

6~8KG brushless (required & not included)

Cruising speed

150~200 km/h

Flying time

3~5 mins

Wing area

47.6 dm2

Wing load

178.6 g/dm2

Main material

20 times the import of aeromodelling EPO

Painting surface

Matte environmental water-borne paint + decal

Suitable experience level

□Zero basis □Beginner ■Intermediate □Advanced

PNP Assembly difficulty

□☆10mins ■★☆30mins □★★60mins

Suitable for ambient temperature

0℃~40℃

Radio System

6 channel (required & not included)

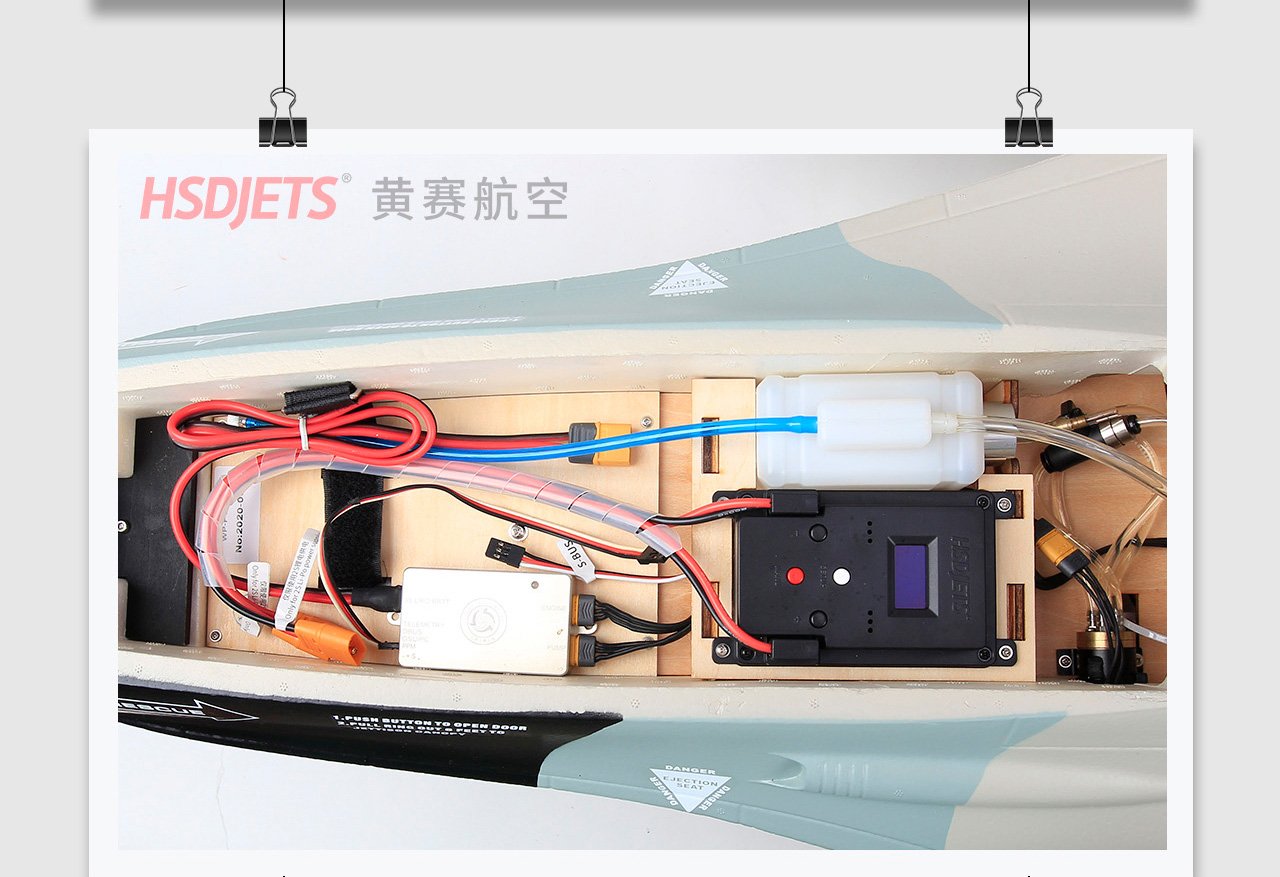

Control System

MFC-2085

Servos(All 7.4V High voltage)

40g×2 Metal gear with 60mm lead (left & right Horizontal tail forward)
25g×2 Metal gear with 150mm lead (left & right Aileron forward)
25g×1 Metal gear with 230mm lead (Rudder forward)
12g×2 Metal gear with 480mm lead (with protection function)(Left & right rear cover plate forward)
12g×1 Metal gear with 480mm lead (with protection function)(Front cover plate forward)
12g×1 Metal gear with 320mm lead (with protection function)(Front wheel steering forward)
12g×1 Metal gear with 480mm lead (Front wheel 360 locking forward)
12g×1 Metal gear with 480mm lead (Rear wheel 360 locking reverse)
12g×1 Metal gear with 480mm lead (Rear wheel 360 locking forward)

Ailerons

Yes

Flaps

No

Elevator(Horizontal tail)

Yes

Rudder(Vertical tail)

Yes

The smoke system

No

LED lights system

Yes

Electromagnetic brake system

Yes

Reinforced gyro

Selective configuration (not included)

Packaging / Size

Packing Box + Outer Box(Card mark)/1456×518×337(mm)

CG (Center of Gravity)

155~160mm from the leading edge of the Main Wing

Landing Gears

All-metal simulation electronic retractable landing gear×3

Battery Charger

LiPo battery charger (required & not included)

* Fuselage×1
* Left Wing×1
* Right Wing×1
* Nose×1
* Cockpit canopy×1
* Vertical Stabilizer×1
* Left Horizontal tail ×1
* Right Horizontal tail ×1
* L/R Auxiliary tank ×1
* L/R wingtip missile ×1
* L/R wingtip missile pylon ×1
* L/R No.1 missile ×1
* L/R No.2 missile ×1
* L/R tail fins ×1
* Main wing carbon tube L=400mm external diameter 10mm×2
* Accessories Bag ×1
* Fuselage antenna ×1
* Pitot×1
* Screw (HA3×14mm)×10 (Nose & Engine)
* Screw (HM3×6mm)×2 (Horizontal tail)
* Screw (HA3×10mm)×8 (Tail nozzle & Vertical)
* Screw (KA3×16mm)×8 (Missile)
* Screw (KA3×20mm)×8 (Missile)
* Screw (KM3×60mm)×8 (Auxiliary tank)
* Screw (HM3×10mm)×8 (Main wing)
* HF-16 V2 Manual×1
* MFC-2085 Manual×1

* SW 6~8KG brushless (required & not included)
* 6 channel radio system(radio & receiver) (required & not included)
* 2S,7.4V,3300~5200mAh×2,LiPo with XT60 plug (required & not included)
* LiPo battery charger (required & not included)
